The module: 530 × 325 mm
GN 1/1 is the full size. Everything else is cut from the same footprint so that pans interchange between a chafing dish, a combi oven, a blast chiller, a salad counter and a trolley rack without changing the rails. The dimensions below are the EN 631 plan sizes; our own catalogue prints the same numbers against the DJ model codes.
| Size | Plan size (mm) | How many fit in a GN 1/1 |
|---|---|---|
| 2/1 | 650 × 530 | 2 full pans side by side (deck ovens, some trolleys) |
| 1/1 | 530 × 325 | 1 |
| 2/3 | 354 × 325 | — |
| 1/2 | 325 × 265 | 2 |
| 1/3 | 325 × 176 | 3 |
| 1/4 | 265 × 162 | 4 |
| 1/6 | 176 × 162 | 6 |
| 1/9 | 176 × 113 | 9 |
Depth is the number buyers forget to specify
Plan size decides whether the pan fits; depth decides how much food it holds and whether the lid closes. Our stocked depths run 25, 40, 65, 100 and 150 mm. Rough gross volume for a GN 1/1, before you allow for the rim and for not filling to the brim:
| Depth (mm) | Gross litres, GN 1/1 | Typical use |
|---|---|---|
| 25 | ≈ 4.3 | pastry trays, display, thawing, lids over deeper pans |
| 40 | ≈ 6.9 | baked dishes, gnocchi, sliced display |
| 65 | ≈ 11.2 | the workhorse: hot holding in a chafing dish, prep in a cold counter |
| 100 | ≈ 17.2 | sauces, marinating, batch cooking, soups |
| 150 | ≈ 25.9 | deep soups and stews — check the lid and the unit's internal height first |
Which pan goes in which machine
| Your equipment | What to buy | Why |
|---|---|---|
| Chafing dish (roll-top or flat) | 1/1 or 1/2, depth 65 or 100 mm | 1/1 for full-size dishes; two 1/2 lets you hold two dishes in one frame |
| Refrigerated salad counter | 1/2, 1/3, 1/4 and 1/6, depth 100–150 mm | Mixing fractions is how you fit six ingredients into one rail |
| Combi oven / deck oven | 2/1 or 1/1, depth 25–65 mm | Ovens are rated in GN 2/1 or 1/1 counts — match the tray guides |
| Blast chiller | 1/1 or 2/3, depth 40–65 mm | Shallow cools faster; deep pans hold heat in the core |
| Soup kettle / sauce pump station | 1/1 depth 150 mm, or the matching insert | Volume matters more than footprint for liquids |
| Transport trolley | 1/1 with a flat lid, on a GN rack | Racks are spaced by pan depth, not by count |
Material: the two questions that decide price
- AISI 304 or 430? 304 is the standard for salt, acid and repeated washing; 430 is magnetic and cheaper and is fine for dry bakery use.
- Drawn or welded? A drawn pan has no seams to trap food but cannot be as deep; welded pans reach 150 mm and above.
- Rim: a rounded, rolled rim survives being dropped. A sharp rim is cheaper and cuts hands in a busy service.
- Lids: buy lids with the pans on the same order — a 1/1 lid does not seal a 2 × 1/2 layout.
What we stock, by model code
The tables below are read from our own export catalogue, not from a generic chart. If a size you need is not listed, tell us the plan size and depth and we will quote the tooling.

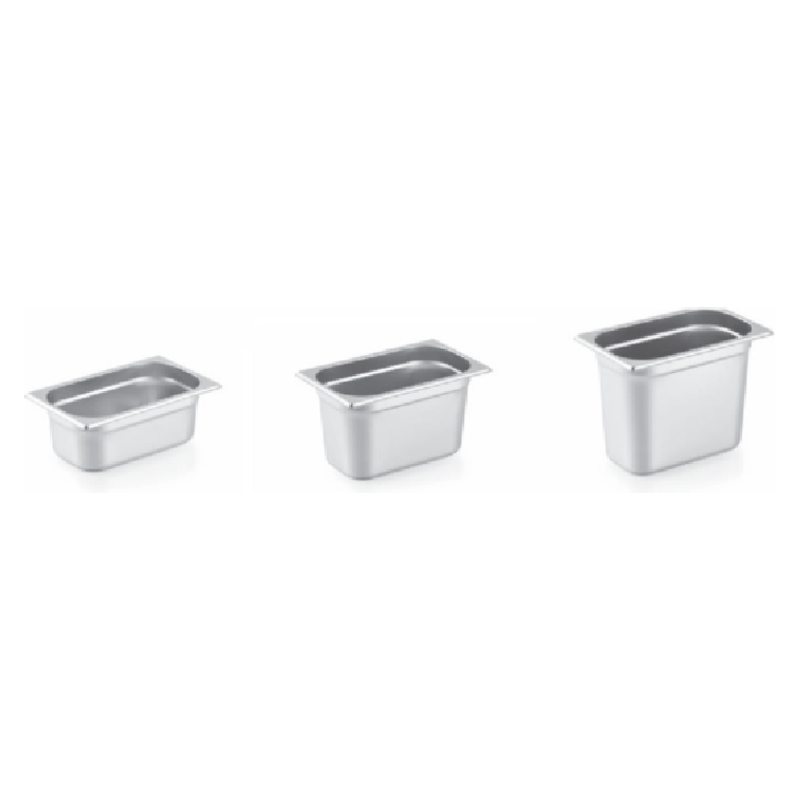

Stainless Gastronorm Buffet Pan DJ Series 19 models · Gastronorm Pan · catalogue source: 自助餐设备.pdf p13-16
| Model / Capacity | Size W×D×H (mm) |
|---|---|
| DJ1-65 | 530x325x65 |
| DJ1-100 | 530x325x100 |
| DJ1-150 | 530x325x150 |
| DJ2-65 | 325x265x65 |
| DJ2-100 | 325x265x100 |
| DJ3-65 | 325x176x65 |
| DJ3-100 | 325x176x100 |
| DJ4-65 | 265x162x65 |
| DJ4-100 | 265x162x100 |
| DJ6-65 | 176x162x65 |
| DJ6-100 | 176x162x100 |
| DJ9-65 | 176x108x65 |
| DJ9-100 | 176x108x100 |
| DJ23-65 | 355x325x65 |
| DJ23-100 | 355x325x100 |
| DJ1-100P | 530x325x100 |
| DJ2-100P | 325x265x100 |
| DJ11-L | 530x325 |
| DJ12-L | 325x265 |
US Type Straight-wall Gastronorm Pan DJ-T / CT Series 60 models · Gastronorm Pan · catalogue source: 自助餐设备.pdf p15-16
| Model / Capacity | Size W×D×H (mm) |
|---|---|
| DJ11-25T | 530x325x25 |
| DJ11-40T | 530x325x40 |
| DJ11-65T | 530x325x65 |
| DJ11-100T | 530x325x100 |
| DJ11-150T | 530x325x150 |
| DJ11-200T | 530x325x200 |
| DJ12-25T | 325x265x25 |
| DJ12-40T | 325x265x40 |
| DJ12-65T | 325x265x65 |
| DJ12-100T | 325x265x100 |
| DJ12-150T | 325x265x150 |
| DJ12-200T | 325x265x200 |
| DJ13-25T | 325x176x25 |
| DJ13-40T | 325x176x40 |
| DJ13-65T | 325x176x65 |
| DJ13-100T | 325x176x100 |
| DJ13-150T | 325x176x150 |
| DJ13-200T | 325x176x200 |
| DJ14-25T | 265x162x25 |
| DJ14-40T | 265x162x40 |
| DJ14-65T | 265x162x65 |
| DJ14-100T | 265x162x100 |
| DJ14-150T | 265x162x150 |
| DJ14-200T | 265x162x200 |
| DJ16-65T | 176x162x65 |
| DJ16-100T | 176x162x100 |
| DJ16-150T | 176x162x150 |
| DJ16-200T | 176x162x200 |
| DJ19-65T | 176x108x65 |
| DJ19-100T | 176x108x100 |
| DJ19-150T | 176x108x150 |
| DJ23-20T | 355x325x20 |
| DJ23-40T | 355x325x40 |
| DJ23-65T | 355x325x65 |
| DJ23-100T | 355x325x100 |
| DJ23-150T | 355x325x150 |
| DJ23-200T | 355x325x200 |
| DJ14-65CT | 265x162x65 |
| DJ14-100CT | 265x162x100 |
| DJ14-150CT | 265x162x150 |
| DJ14-200CT | 265x162x200 |
| DJ16-65CT | 176x162x65 |
| DJ16-100CT | 176x162x100 |
| DJ16-150CT | 176x162x150 |
| DJ16-200CT | 176x162x200 |
| DJ19-65CT | 176x108x65 |
| DJ19-100CT | 176x108x100 |
| DJ19-150CT | 176x108x150 |
| DJ23-20CT | 355x325x20 |
| DJ23-40CT | 355x325x40 |
| DJ23-65CT | 355x325x65 |
| DJ23-100CT | 355x325x100 |
| DJ23-150CT | 355x325x150 |
| DJ23-200CT | 355x325x200 |
| DJ11-L | 530x325 |
| DJ12-L | 325x265 |
| DJ13-L | 325x176 |
| DJ14-L | 265x162 |
| DJ16-L | 176x162 |
| DJ19-L | 176x108 |

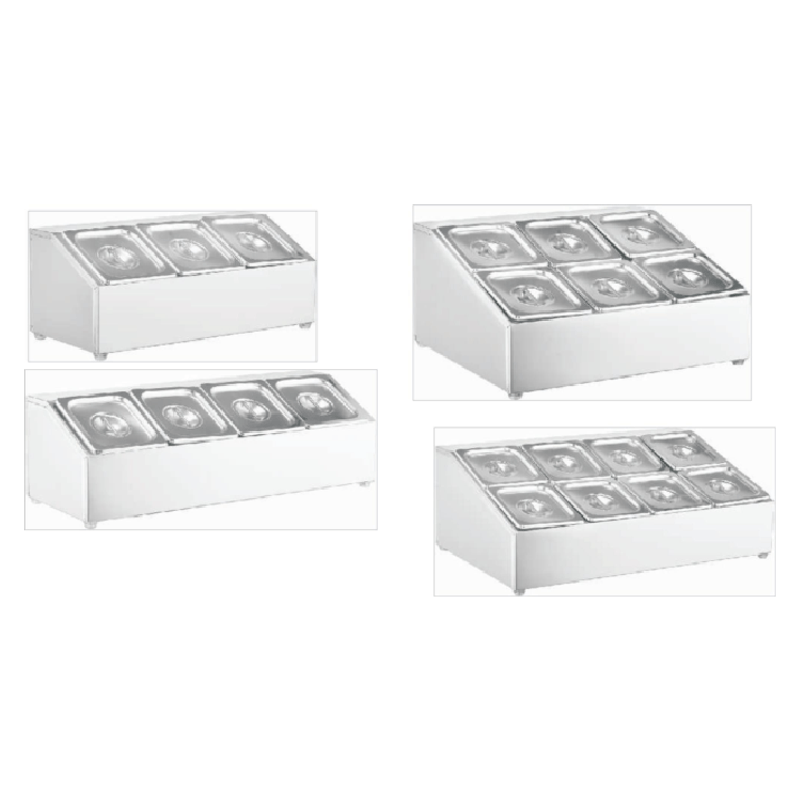

Stainless Gastronorm Pan Rack GNR Series 15 models · Gastronorm Pan · catalogue source: 自助餐设备.pdf p16
| Model / Capacity | Size W×D×H (mm) |
|---|---|
| GNR6-3A | 510x245x210 |
| GNR6-4A | 670x245x210 |
| GNR6-5A | 830x245x210 |
| GNR6-6A | 990x245x210 |
| GNR6-4B | 340x420x250 |
| GNR6-6B | 510x420x250 |
| GNR6-8B | 670x420x250 |
| GNR9-3A | 385x226x205 |
| GNR9-4A | 508x226x205 |
| GNR9-5A | 631x226x205 |
| GNR9-6A | 754x226x205 |
| GNR9-6B | 385x394x284 |
| GNR9-8B | 508x394x284 |
| GNR9-10B | 631x394x284 |
| GNR9-12B | 754x394x284 |
Send us your pan list with sizes and quantities — pans travel flat and are usually the cheapest cubic metre in the container, so they are worth consolidating with your equipment order.
